Author Topic: '91 HD: slowly starting over.  (Read 9547 times)

KODIAK

  • 3500HD Hero
  • *****
  • Posts: 407
  • Location: Brandon Fl
Re: '91 HD: slowly starting over.
« Reply #15 on: April 08, 2015, 06:30:03 PM »
  looks good

Raymo

  • Global Moderator
  • 3500HD Driver
  • *****
  • Posts: 381
  • Age: 30
  • Location: Port Huron Area, MI
Re: '91 HD: slowly starting over.
« Reply #16 on: June 25, 2015, 10:41:53 PM »

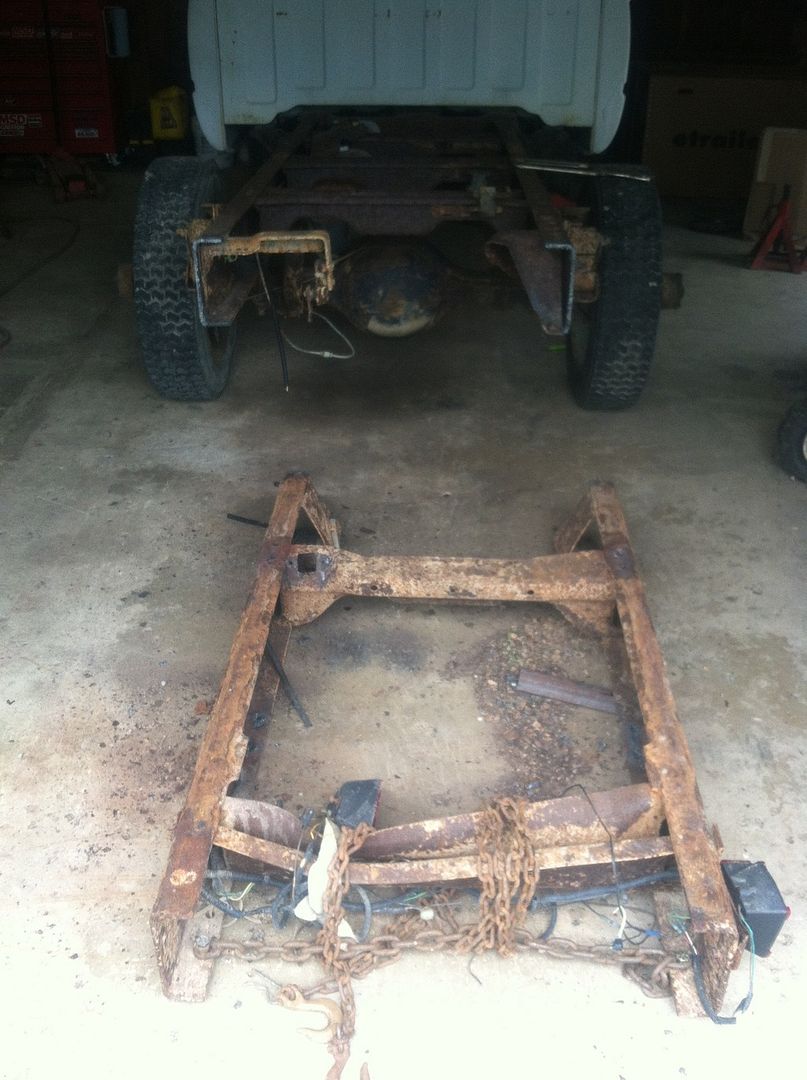

Power washed all the junk off of the section of the rear that's staying, then got it this far today.

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison

Raymo

  • Global Moderator
  • 3500HD Driver
  • *****
  • Posts: 381
  • Age: 30
  • Location: Port Huron Area, MI
Re: '91 HD: slowly starting over.
« Reply #17 on: July 10, 2015, 01:54:39 PM »

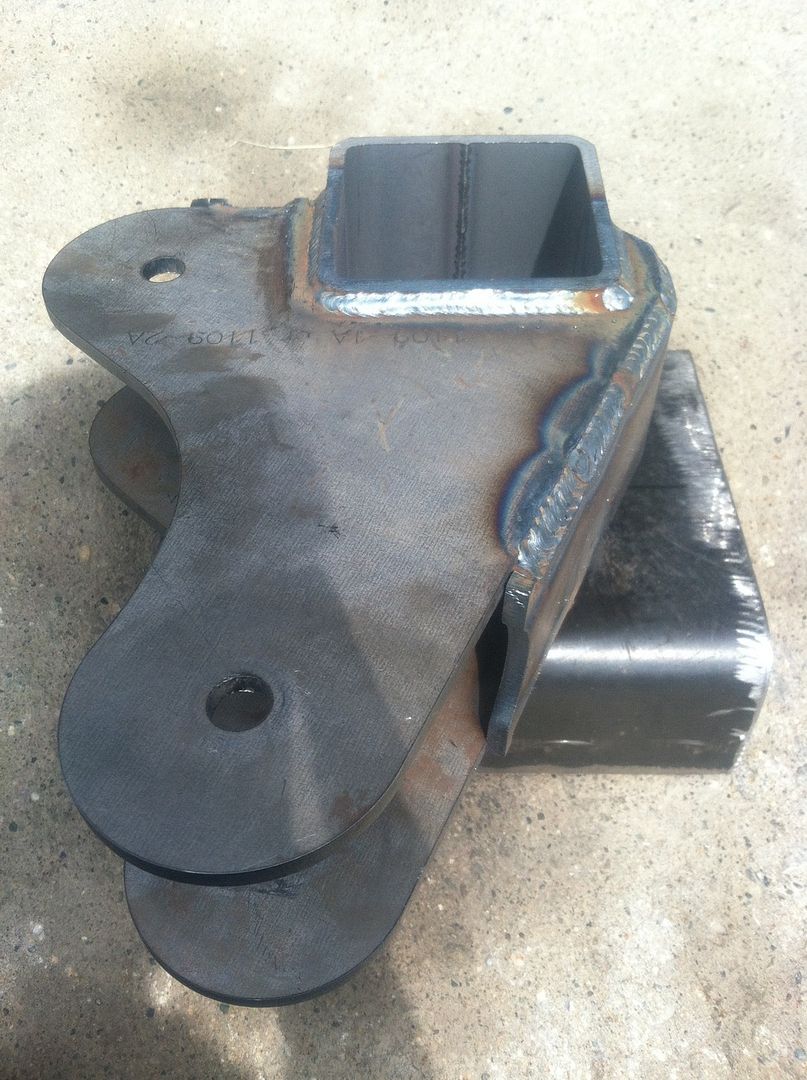

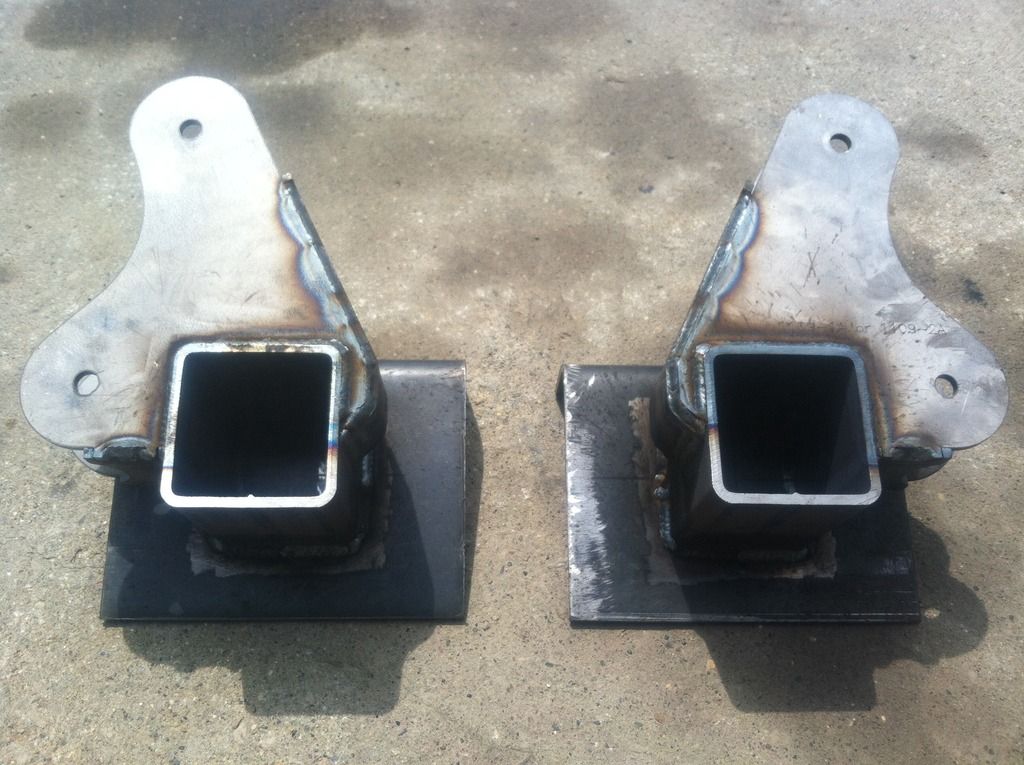

Been working on the four link with bags, got the frame side brackets started today!





'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison

ED-NY

  • Administrator
  • 3500HD Hero
  • *****
  • Posts: 1004
  • Age: 67
  • Location: Champlain, NY
Re: '91 HD: slowly starting over.
« Reply #18 on: July 10, 2015, 10:21:51 PM »
Great metal work!

KODIAK

  • 3500HD Hero
  • *****
  • Posts: 407
  • Location: Brandon Fl
Re: '91 HD: slowly starting over.
« Reply #19 on: July 10, 2015, 10:41:14 PM »
X2 Looks good

Raymo

  • Global Moderator
  • 3500HD Driver
  • *****
  • Posts: 381
  • Age: 30
  • Location: Port Huron Area, MI
Re: '91 HD: slowly starting over.
« Reply #20 on: August 07, 2015, 12:06:38 PM »

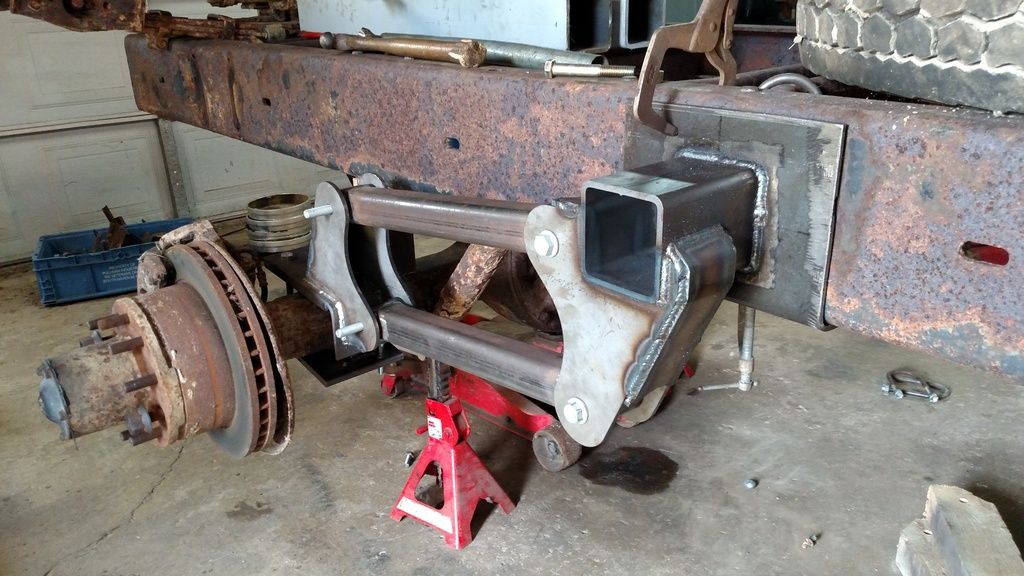

Some more done, little by little anyway.

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison

ED-NY

  • Administrator
  • 3500HD Hero
  • *****
  • Posts: 1004
  • Age: 67
  • Location: Champlain, NY
Re: '91 HD: slowly starting over.
« Reply #21 on: August 07, 2015, 12:10:13 PM »
That's slick...have the same setup..but it's on my 33 Chevy!

KODIAK

  • 3500HD Hero
  • *****
  • Posts: 407
  • Location: Brandon Fl
Re: '91 HD: slowly starting over.
« Reply #22 on: August 07, 2015, 02:50:01 PM »
Looks good   :)

KODIAK

  • 3500HD Hero
  • *****
  • Posts: 407
  • Location: Brandon Fl
Re: '91 HD: slowly starting over.
« Reply #23 on: August 08, 2015, 10:50:07 AM »
 ? Is the Dana 80 10 lug rears in HD  Are  they Equal to the AAM 8 lug Axel  ?

KODIAK

  • 3500HD Hero
  • *****
  • Posts: 407
  • Location: Brandon Fl
Re: '91 HD: slowly starting over.
« Reply #24 on: August 11, 2015, 10:26:19 PM »
DOSE any one know about the rears ???

RPF207

  • 3500HD Driver
  • ****
  • Posts: 223
  • Age: 29
  • Location: Maine
Re: '91 HD: slowly starting over.
« Reply #25 on: August 13, 2015, 03:08:43 PM »
Hey Kodiak, if you're referring to the AAM 11.5 then there are some pretty comparable features but I believe the GM Dana 80 still "takes the cake". Both axles can be had with 4" axle tubes and disc brakes, AAM having usually a larger disc. GM Dana 80 uses a 2" 37 spline axle shaft while the AAM uses a 1.56" 30 spline. Both are full floaters but use different methods of attachment. GM 80 has a splined end that slips inside the end with a retaining cap while the AAM uses a bolt on method. Dana 80 lockers usually run on the cheaper side. Both axles seem to have the same GAW rating.
1999 chevy HD 4x4 135.5" 6.5 nv4500 bw4470 Dana 70 HP 10 lug front

Due to recent budget cuts the light at the end of the tunnel has been turned off

KODIAK

  • 3500HD Hero
  • *****
  • Posts: 407
  • Location: Brandon Fl
Re: '91 HD: slowly starting over.
« Reply #26 on: August 13, 2015, 10:57:19 PM »
Thank you  & That's some good info on the  Rears

Raymo

  • Global Moderator
  • 3500HD Driver
  • *****
  • Posts: 381
  • Age: 30
  • Location: Port Huron Area, MI
Re: '91 HD: slowly starting over.
« Reply #27 on: August 22, 2015, 04:19:34 PM »

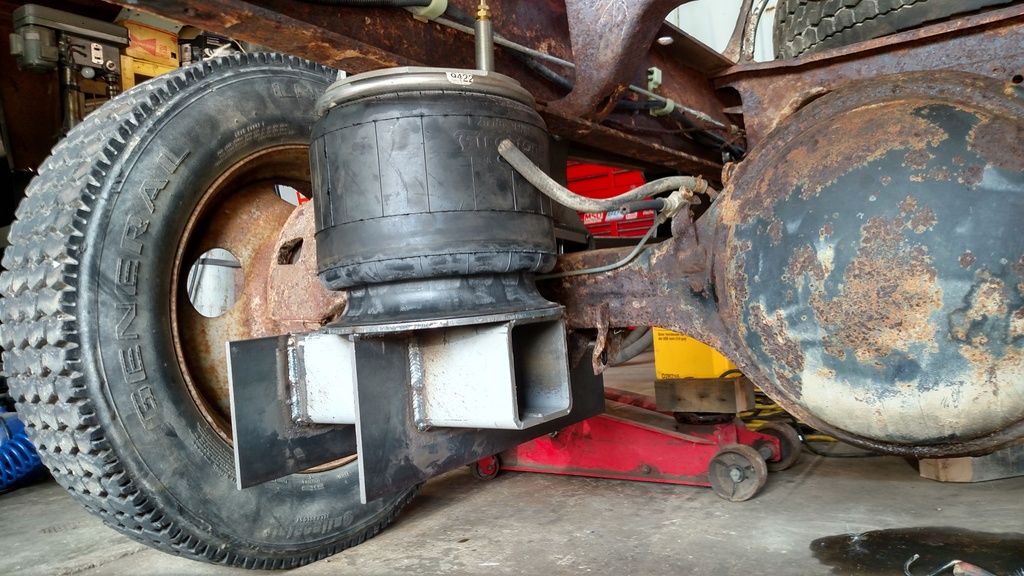

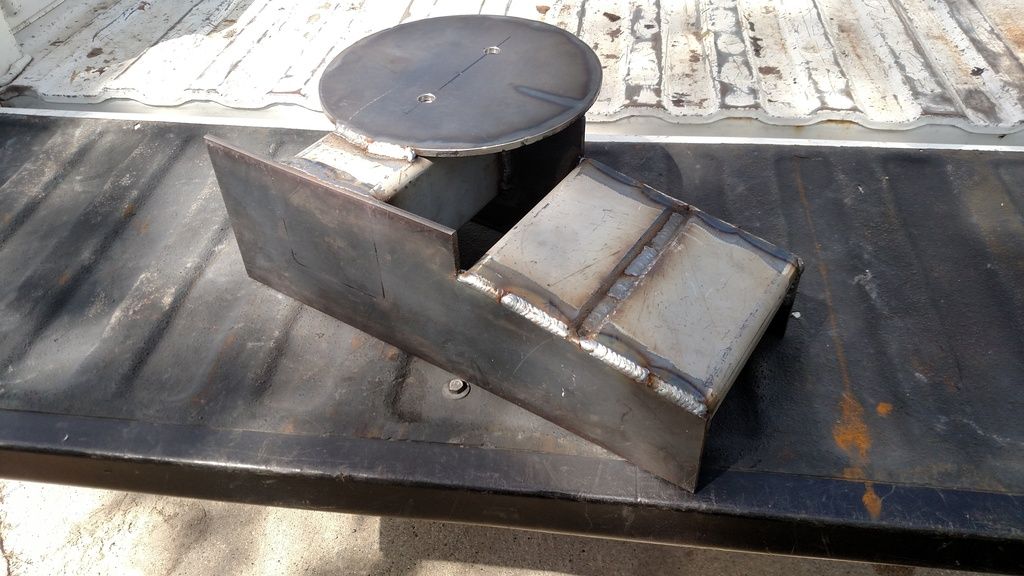

Finally have this thing sitting on its own, now to trim it all up and make it look good. Still need to make a track bar as well.

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison

AZTimT

  • One Ton Driver
  • **
  • Posts: 61
  • Age: 40
  • Location: Western Montana
  • K3500HD from when it wasn't just a sales gimmick!
Re: '91 HD: slowly starting over.
« Reply #28 on: August 22, 2015, 09:05:11 PM »
Wow, you aren't messing around, that looks like the same airbags under my 110k gvw KW!
Looking good! :)
94 K3500HD (factory Monroe 4wd upfit) short wheel base 9' bed 454 no more/NV4500HD/NP261HD/D70 frt/D80 rear 5.13's Cummins powered with 3.73's.
93 C3500HD long wheel base parts truck 14' bed 6.5(gone)/NV4500HD/D80 4.63
95 C3500HD medium wheel base 11' bed 6.5/4L80E/D80 4.63
2000 C3500HD Monroe extended cab 9' bed, 6.5/4l80E/D80HD 4.63 will become 4wd with D70 front and repowered some day...

someotherguy

  • 3500HD Hero
  • *****
  • Posts: 904
  • Age: 48
  • Location: Texas
Re: '91 HD: slowly starting over.
« Reply #29 on: August 23, 2015, 09:07:59 AM »
Thing should ride like a cloud AND haul any load you can throw at it. :)

Richard
06 Silverado ISS / 06 Silverado SS / 06 300C SRT8
