« Reply #15 on: December 06, 2010, 05:17:32 PM »

I've dug up some more pictures from the build.

This is the Raptor bed liner installed on the floor


Here's the guage panel and guages. I used the Auto Meter angling cups to turn all the guages twards me, looks pretty sweet from the side. The heater and headlight switches are mounted in here also.


The 4" downpipe before the new inner fender went on


And an overview of the engine compartment during reassembly

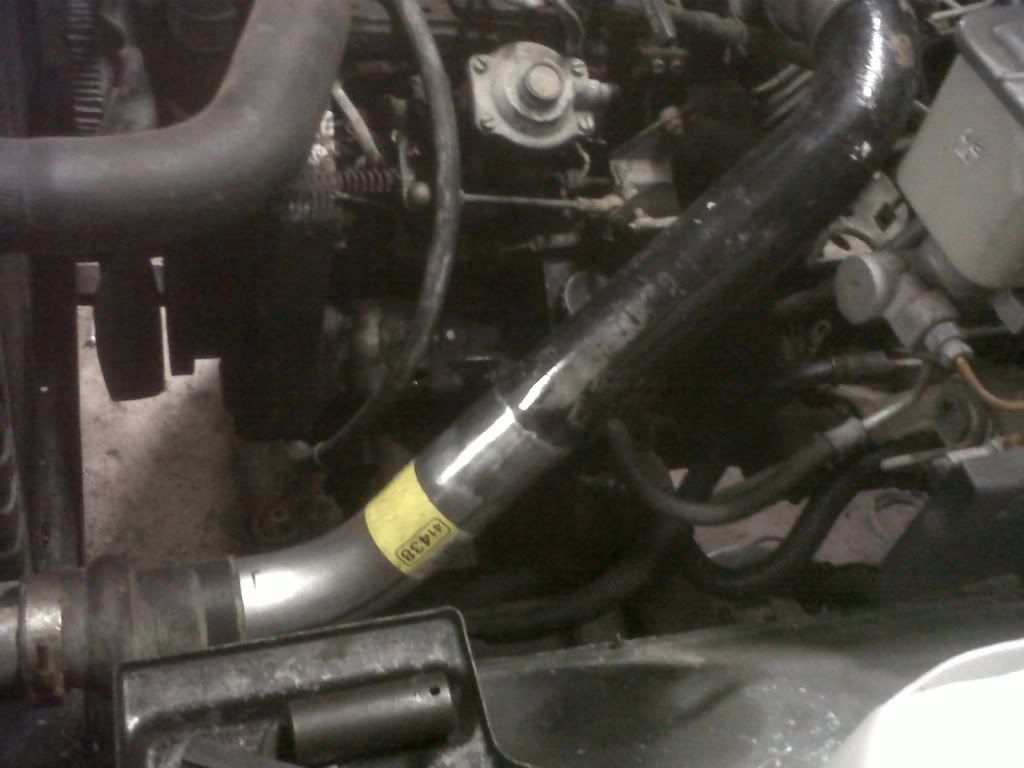

The IC pipe from the intercooler to the engine, checking fit.




Plans now are to bring this thing down 4" and give it a better looking paint color, but I won't mention what scheme until I have pics of it.

And after 740 miles, I'm averaging 12mpg loaded and empty, lots of mixed driving and 20 minutes to warm up everyday. I'm debating going toa 3.55 gear, and I think my K&N might be a little too small/restrictive.

I think next step tho, is an interior make-over. I need some carpet and a bench seat, cause I'm freezing my A$$ off in this thing.
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
ED-NY
Administrator
3500HD Hero
*****
Age: 66
Location: Champlain, NY
Posts: 911



« Reply #16 on: December 06, 2010, 06:23:19 PM »

Very clean and professional looking job! How did you apply the bed liner?

Ed
Logged
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #17 on: December 07, 2010, 01:33:31 PM »

Thanks Ed!

I applied the liner with the gun supplied in the kit. They call it "spray" but it's more of a "glob"  Cheesy

I highly recommend the stuff, it comes in a kit with gun, hardener and 4 bottles of liner.

Google UPOL Raptor and you'll find tons of good stuff on it.
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
outkast kustoms
Single Axle Driver
*
Location: st.louis
Posts: 25



« Reply #18 on: December 25, 2010, 08:07:52 PM »

did u have to cut the x member for the cummins to sit down enough?
Logged
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #19 on: December 26, 2010, 02:24:11 AM »

Nope, it sits about an inch higher than my other Cummins conversion in a regular 3500. I have about 5/8" of clearance around the bell housing to the cab.
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #20 on: March 30, 2011, 08:06:18 PM »

Done some tinkering with the truck today. I went over some loose ends and started fitting my new front porch   Cheesy

I'm going to straighten it up a bit, replace the diamond plate on top and add in some bracing underneath for pushing duty.

Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #21 on: May 16, 2011, 05:42:04 PM »

Small update.

I've got myself a plow set up for this truck now, so the winch bumper idea has been scrapped, and a GM bumper will go back on when I get the plow mounted. It's also time to find a good set of winter tires.

I'm also going to use a '98 interior to update the inside of the cab. I'll be redoing my gauges at that time for a much cleaner- closer to factory look. I just have to wait on the donor truck to die so I can strip it down  Grin

I'm still undecided about the new paint job, and with the donor truck dying I'll have a mint grille to replace my dried out- busted up unit.

Things are going to slow down even more for it though, as I'm working on buying my first house and I'll be picking up a trailer project tomorrow. So it's looking like a very busy summer!
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #22 on: August 03, 2012, 02:07:02 PM »

This thing isn't dead yet...



Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
Rayjon237
Dually Driver
***
Posts: 142


« Reply #23 on: August 03, 2012, 04:17:10 PM »

i like the white, love the dually flair it turned our really nice..  sharp truck

 keep your eyes out it would look killer with some alcoa's...lots of motorhome dying to give them up...
« Last Edit: August 03, 2012, 04:41:02 PM by Rayjon237 » Logged
someotherguy
3500HD Hero
*****
Age: 47
Location: Texas
Posts: 852



« Reply #24 on: August 03, 2012, 04:33:23 PM »

Just keeps getting better, Raymo!

Richard
Logged

06 Silverado ISS / 06 Silverado SS / 06 300C SRT8
Organic Log Farmer
Single Axle Driver
*
Age: 56
Location: Lexington, Michigan
Posts: 21


"You're making me VERY angry..."


« Reply #25 on: March 03, 2016, 11:44:59 AM »

Raymo, did you ever mount the winch bumper ?  I picked up that same bumper for a K5 project that I never used and I was considering it for my 3500HD, especially since I'm a single axle and I'll use the truck on my sandy woodlot.  Do you know if a decent recovery winch will fit the bumper ?  Assuming the fabrication of solid frame mounts do you think the bumper is strong enough to extract a loaded 3500HD ?
Logged

Born a Boomer.
Still Experiencing Childhood, Perhaps Entering Adolescence.
Still Learning...
Chronologically An Adult, The Jury Is
Still Out...
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #26 on: March 03, 2016, 09:48:30 PM »

I did run that bumper for a little bit, but it was ugly, as as you wondered, wasn't up to any real task. I'm assuming it might be good for about an 8,000lb winch, but that would be maxing it out damn near empty.
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
AZTimT
One Ton Driver
**
Age: 39
Location: Western Montana
Posts: 61


K3500HD from when it wasn't just a sales gimmick!


« Reply #27 on: March 04, 2016, 02:40:51 AM »

Maybe my bumper is built or modified to be different from yours? I know it has held up to a 12k Ramsey winch and many pushing endeavors over the past 7 years without taking any damage. It isn't pretty, but it sure makes a nice place to stand when messing around under the hood. I've also switched to just running 4 load range H 245's for winter time to make a big difference in winter traction. Function over form seems to work well for my needs.
Logged

94 K3500HD (factory Monroe 4wd upfit) short wheel base 9' bed 454 no more/NV4500HD/NP261HD/D70 frt/D80 rear 5.13's Cummins powered with 3.73's.
93 C3500HD long wheel base parts truck 14' bed 6.5(gone)/NV4500HD/D80 4.63
95 C3500HD medium wheel base 11' bed 6.5/4L80E/D80 4.63
2000 C3500HD Monroe extended cab 9' bed, 6.5/4l80E/D80HD 4.63 will become 4wd with D70 front and repowered some day...
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #28 on: March 04, 2016, 10:44:04 AM »

Very possible, as ours are spec's for older, lighter trucks.

I did build my own version of front end protection that's integrated with my plow set up now, not as ugly and slightly less awkward  Grin


* IMG_20151107_104553176.jpg (4866.7 KB, 2952x5248 - viewed 76 times.)
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
Raymo
Global Moderator
3500HD Driver
*****
Age: 29
Location: Port Huron Area, MI
Posts: 380



« Reply #29 on: March 04, 2016, 10:48:59 AM »

Alright, its still ugly lol.


* IMG_20150822_203107155.jpg (4920.71 KB, 5248x2952 - viewed 88 times.)
Logged

'94 3500-HD, Cummins, Getrag, NP205. Shortend rear frame with a Pickup Bed. Dana 60 front, stock 80 rear.

'03 2500-HD 8.1 and Allison
